Check valves are used to allow fluid flow in a system in only one direction. They are operated by the flow of fluid in the piping. A check valve may be the swing type, lift type, or ball type. Most valves can be classified as being either stop valves or check valves. Some valves, however, function either as stop valves or as check valves-depending on the position of the valve stem. These valves are known as stop-check valves.

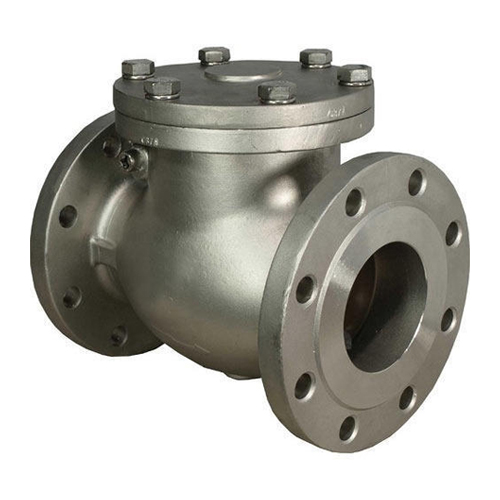

Swing Check Valve
Special Features
- The Body to Bonnet joint is a male & female as per ASME 1501.3001 & 6001 and ring joint is used In higher classes valves.
- Valves meet the requirements of fugitive emission levels Shell category-B as per MESCSPE 77 / 312
- Low Friction Losses
- Drip Tight Seating
- Low Maintenance
- No Hinge Pin or spring to Wear
- Easy in-line serviceability
Options in Swing Check Valves
- Check Valves can be supplied with counter weight or dash pot arrangement
- Available in tilting disc design
Dimension
LIFT UP CHECK VALVE
Dimension
- Dimension and other engineering data are subjected to change without notice.
- Other flange drilling also available on request.
